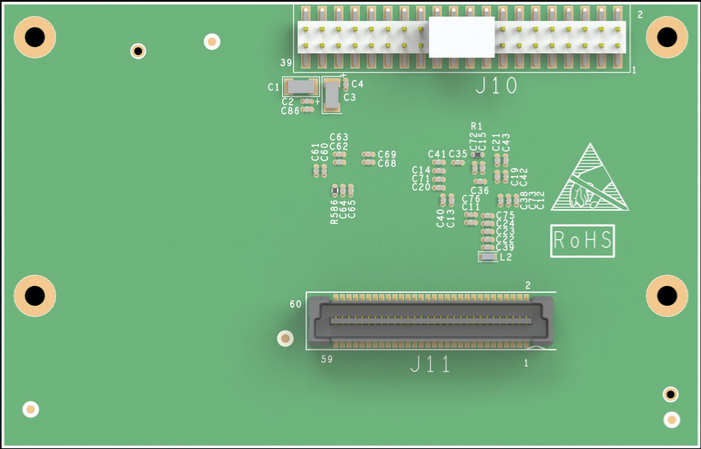

The new Shiratech Camera 1 Mezzanine is a 96Boards compatible add on board with OnSemiconductor 13Mp imaging sensor and AP1302 ISP for evaluation and prototyping.

SPECIFICATIONS

AR1337 CMOS Imaging Sensor

  • Features:
    • 13 MP CMOS imaging sensor
    • SuperPD™ PDAF technology
    • Unique PDAF pattern and micro-lens technologies
    • On-chip bad pixel correction and AF calculations
    • 1.1μm pixels providing an industry standard 1/3.2” optical format
    • High Quantum Efficiency and Sensitivity with Low read noise
    • Supports 13 MP at 30 frames per second
    • Supports 4k2k video at 30 frames per second and Full HD 1080P video up to 60 frames per second.

AP1302 Image Coprocessor

Advanced Image Coprocessor for ON Semiconductor’s Sensors

  • Features:
    • Optimized for operation with ON Semiconductor’s Clarity+™ Pixel technology sensors as well as Bayer pattern CMOS Image Sensors (CIS)
    • Up to 13 Mp (4224×3156) sensor support
    • Designed to support ON Semiconductor sensors that provide video interlaced HDR (iHDR)
    • 450 Mp/second processing (13Mp at 30/1080p at 120/720p at 240 – subject to sensor limitations
    • Color gaining and gamma correction
    • Frame rate reduction, image resizing and clipping
    • Auto exposure, auto white balance, auto focus, auto flicker detection and mitigation
